Consider this scenario: You fire up your Docker containers, hit an API endpoint, and … bam! It fails. Now what? The usual drill involves diving into container logs, scrolling through them to understand the error messages, and spending time looking for clues that will help you understand what’s wrong. But what if you could get a summary of what’s happening in your containers and potential issues with the proposed solutions already provided?

In this article, we’ll dive into a solution that solves this issue using AI. AI can already help developers write code, so why not help developers understand their system, too?

Signal0ne is a Docker Desktop extension that scans Docker containers’ state and logs in search of problems, analyzes the discovered issues, and outputs insights to help developers debug. We first learned about Signal0ne as the winning submission in the 2023 Docker AI/ML Hackathon, and we’re excited to show you how to use it to debug more efficiently.

Introducing Signal0ne Docker extension: Streamlined debugging for Docker

The magic of the Signal0ne Docker extension is its ability to shorten feedback loops for working with and developing containerized applications. Forget endless log diving — the extension offers a clear and concise summary of what’s happening inside your containers after logs and states are analyzed by an AI agent, pinpointing potential issues and even suggesting solutions.

Developing applications these days involves more than a block of code executed in a vacuum. It is a complex system of dependencies, and different user flows that need debugging from time to time. AI can help filter out all the system noise and focuses on providing data about certain issues in the system so that developers can debug faster and better.

Docker Desktop is one of the most popular tools used for local development with a huge community, and Docker features like Docker Debug enhance the community’s ability to quickly debug and resolve issues with their containerized apps.

Signal0ne Docker extension’s suggested solutions and summaries can help you while debugging your container or editing your code so that you can focus on bringing value as a software engineer. The term “developer experience” is often used, but this extension focuses on one crucial aspect: shortening development time. This translates directly to increased productivity, letting you build containerized applications faster and more efficiently.

How does the Docker Desktop extension work?

Between AI co-pilots, highly integrated in IDEs that help write code, and browser AI chats that help understand software development concepts in a Q&A way, there is one piece missing: logs and runtime system data.

The Signal0ne Docker Desktop extension consists of three components: two hosted on the user’s local system (UI and agent) and one in the Signal0ne cloud backend service. The agent scans the user’s local environment in the search of containers with invalid states, runtime issues, or some warnings or errors in the logs, after issue discovery, it collects additional data from container definition for enhanced analysis.

After the Signal0ne agent discovery, data is sent to the backend service, where a combination of pre-trained LLM and solution search retrieval service performs the analysis. The analysis of the issues can be seen from the Signal0ne extension UI, including:

• Short log summary — Outlines what is happening within a particular container, including logs on which analysis was based can be accessed from the sources dropdown if you wish.
• Solutions summary — One paragraph about possible solutions to the analyzed issue with some explanation of why this particular solution was proposed.
• Solution sources — Links to websites where the issue has already been solved by the community (for example, a GitHub issue or StackOverflow post).

Watch this short video demonstration for more details:

Technical details

The issue analysis pipeline is powered by the LangChain tooling framework, which utilizes open source Mistral 7b LLM with LLM-optimized web search that browses sources of existing solutions on the open web (Figure 1).

The following section shows sample issue analysis pipeline output:

Logs from Docker container:

“$ irb\n>> \"12341:asdf\"[/\\d+/]\n# => \"12341\"  \n>> \"12341:asdf\"[/\\d*/]\n# => \"12341\"  \n>> \"12341:asdf\"[0..5]\n# => \"12341:\"  \n>> \"12341:asdf\"[0...5]\n# => \"12341\"  \n>> \"12341:asdf\"[0, ':']\nTypeError: can't convert String into Integer\n  from (irb):5:in”

Summary:

The user is trying to extract a substring from the string 12341:asdf using different Ruby methods, such as [/\\\\d+/], [/\\\\d\\\\*/], [0..5], [0...5], and [0, ':']. However, when attempting to use the indexing method [0, ':'], an error occurs because the method expects an integer argument but receives a string instead.

Predicted solutions:

“To extract a substring from the given string 12341:asdf without encountering an error when using indexing methods, consider the following options:

1. Using regular expressions:

To extract a substring using regular expressions, you can use the scan method with a regular expression pattern. For instance, to extract the digits before the colon, you can use the following code snippet:

				str = "12341:asdf"
				substring = str.scan(/[\\\\d]+/)
				puts substring.first
				# Output: ["12341"]
				puts substring.first[0]
				# Output: 12341

2. Slicing:

Another alternative to indexing is slicing, which allows you to extract a specified range of characters from a string. To extract the digits before the colon using slicing, you can use the following code snippet:

str = "12341:asdf"
	   substring = str[0...str.index(":")]
               puts substring
	   # Output: "12341"
	   puts substring.to_i
	   # Output: 12341

These two methods should help you extract the desired substring from the given string without encountering an error.

Getting started

Getting started with the Signal0ne Docker Desktop extension is a straightforward process that allows developers to leverage the benefits of unified development.

Here are the steps for installing Signal0ne Docker extension:

1. Install Docker Desktop.

2. Choose Add Extensions in the left sidebar. The Browse tab will appear by default (Figure 2).

3. In the Filters drop-down, select the Utility tools category.

4. Find Signal0ne and then select Install (Figure 3).

5. Log in after the extension is installed (Figure 4).

6. Start developing your apps, and, if you face some issues while debugging, have a look at the Signal0ne extension UI. The issue analysis will be there to help you with debugging.

Make sure the Signal0ne agent is enabled by toggling on (Figure 5):

Figure 6 shows the summary and sources:

Proposed solutions and sources are shown in Figures 7 and 8. Solutions sources will redirect you to a webpage with predicted solution:

If you want to contribute to the project, you can leave feedback via the Like or Dislike button in the issue analysis output (Figure 9).

To explore Signal0ne Docker Desktop extension without utilizing your containers, consider experimenting with dummy containers using this docker compose to observe how logs are being analyzed and how helpful the output is with the insights:

services:
  broken_bulb: # c# application that cannot start properly
    image: 'Signal0neai/broken_bulb:dev'
  faulty_roger: #
    image: 'Signal0neai/faulty_roger:dev'
  smoked_server: # nginx server hosting the website with the miss-configuration
    image: 'Signal0neai/smoked_server:dev'
    ports:
      - '8082:8082'
  invalid_api_call: # python webserver with bug
   image: 'Signal0neai/invalid_api_call:dev'
   ports:
    - '5000:5000'

• broken_bulb: This service uses the image Signal0neai/broken_bulb:dev. It’s a C# application that throws System.NullReferenceException during the startup. Thanks to that application, you can observe how Signal0ne discovers the failed container, extracts the error logs, and analyzes it.
• faulty_roger: This service uses the image Signal0neai/faulty_roger:dev. It is a Python API server that is trying to connect to an unreachable database on localhost.
• smoked_server: This service utilizes the image Signal0neai/smoked_server:dev. The smoked_server service is an Nginx instance that is throwing 403 forbidden while the user is trying to access the root path (http://127.0.0.1:8082/). Signal0ne can help you debug that.
• invalid_api_call: API service with a bug in one of the endpoints, to generate an error call http://127.0.0.1:5000/create-table  after running the container. Follow the analysis of Signal0ne and try to debug the issue.

Conclusion

Debugging containerized applications can be time-consuming and tedious, often involving endless scrolling through logs and searching for clues to understand the issue. However, with the introduction of the Signal0ne Docker extension, developers can now streamline this process and boost their productivity significantly.

By leveraging the power of AI and language models, the extension provides clear and concise summaries of what’s happening inside your containers, pinpoints potential issues, and even suggests solutions. With its user-friendly interface and seamless integration with Docker Desktop, the Signal0ne Docker extension is set to transform how developers debug and develop containerized applications.

Whether you’re a seasoned Docker user or just starting your journey with containerized development, this extension offers a valuable tool that can save you countless hours of debugging and help you focus on what matters most — building high-quality applications efficiently. Try the extension in Docker Desktop today, and check out the documentation on GitHub.

Learn more

• Subscribe to the Docker Newsletter.
• Get the latest release of Docker Desktop.
• Vote on what’s next! Check out our public roadmap.
• Have questions? The Docker community is here to help.
• New to Docker? Get started.

Docker milestones & performance improvements

Docker Desktop updates

We’ve been hard at work enhancing Docker Desktop this year. Among the notable highlights:

• Docker Desktop 4.26: Rosetta, PHP Init, Builds View GA, Admin Enhancements, and Docker Desktop Image for Microsoft Dev Box
• Docker Desktop 4.25: Enhancements to Docker Desktop on Windows, Rosetta for Linux GA, and New Docker Scout Image Analysis Settings
• Docker Desktop 4.24: Compose Watch, Resource Saver, and Docker Engine
• Docker Desktop 4.23: Updates to Docker Init, New Configuration Integrity Check, Quick Search Improvements, Performance Enhancements, and More
• Docker Desktop 4.22: Resource Saver, Compose ‘include’, and Enhanced RBAC Functionality
• Docker Desktop 4.21: Support for New Wasm Runtimes, Docker Init Support for Rust, Docker Scout Dashboard Enhancements, Builds View (Beta), and More
• Docker Desktop 4.20: Docker Engine and CLI Updated to Moby 24.0
• Docker Desktop 4.19: Compose v2, New Language Support, Moby Project Update
• Docker Desktop 4.18: Docker Scout Updates, Container File Explorer GA
• Docker Desktop 4.17: New Functionality for a Better Development Experience
• Docker Desktop 4.16: Better Performance and Docker Extensions GA

Performance milestones

Read “Docker’s Journey Toward Enabling Lightning-Fast Developer Innovation: Unveiling Performance Milestones” to learn about:

• 75% startup time speed improvements
• 85x improvement in upload speed
• 650% improvement in image download speeds
• 71% reduction in build time
• Resource saver mode saves 38,500 CPU hours daily.

Download the latest Docker Desktop release to take advantage of the performance improvements.

Simplifying software supply chain management

We’ve simplified software supply chain management for developers with Docker Scout. Docker Scout policies enable teams to identify, prioritize, and fix their software quality issues at the point of creation to meet their organization’s reliability and security standards while accelerating the speed of execution and innovation.

Learn how to achieve security and compliance goals with policy guardrails in Docker Scout. Visit the Docker Scout product page to learn more.

20 new Docker extensions

Twenty new Docker extensions were added to the Docker extension marketplace in 2023. We highlighted a few extensions on the Docker blog, including Kubescape, NebulaGraph, Gefyra, LocalStack, and Grafana. Explore Docker Hub to discover more extensions, and use the Docker Extensions SDK to create and share your own.

New Docker features

We also announced:

• Docker Build Early Access Program: Docker Build speeds up builds by as much as 39 times by automatically taking advantage of large, on-demand cloud-based servers and team-wide build caching.
• Resource Saver GA release: With Resource Saver, Docker Desktop uses minimal system resources when it’s idle, letting you save battery life on your laptop and improve your multitasking experience.
• Docker Compose Watch GA release: Watch, available in Compose 2.22 and later, lets you automatically update and preview your running Compose services as you edit and save your code.
• Docker Init Beta release: docker init, a new command-line interface (CLI) command introduced as a beta feature, simplifies the process of adding Docker to a project.
• Docker+Wasm Technical Preview 2: The new Technical Preview of Docker+Wasm offers three new runtimes: spin from Fermyon, slight from Deislabs, and wasmtime from Bytecode Alliance.
• Builds view GA release: The new Builds view in Docker Desktop provides detailed insight into your build performance and usage. Get a live view of your builds as they run, explore previous build performance, and dive deep into an error and cache issue.
• Signing Docker Official Images Using OpenPubkey: We announced our intention to use OpenPubkey, a project jointly developed by BastionZero and Docker and recently open-sourced and donated to the Linux Foundation, as part of our signing solution for Docker Official Images (DOI).

All things AI/ML

2023 will be known as the year of AI/ML. For 2024, our investments in AI promise to bring new services and functionality to Docker customers. Recent announcements include:

• GenAI Stack: At DockerCon, with partners Neo4j, LangChain, and Ollama, we announced a new GenAI Stack. We have brought together the top technologies in the generative artificial intelligence (GenAI) space to build a solution that allows developers to deploy a full GenAI stack with only a few clicks.
• Docker AI: Docker’s first AI-powered product promises to boost developer productivity by tapping into the universe of Docker developer wisdom to provide context-specific, automated guidance to developers as they work. Sign up for early access now.
• Docker & Hugging Face partnership: We announced a new partnership with Hugging Face to democratize AI and make it accessible to all software engineers. To dive in, read our blog post, “Effortlessly Build Machine Learning Apps with Hugging Face’s Docker Spaces.”
• Announcing the Docker AI/ML Hackathon 2023 Winners: The 2023 Docker AI/ML Hackathon encouraged participants to build solutions that were innovative, applicable in real life, use Docker technology, and have an impact on developer productivity. Read the announcement blog post to learn about the winning AI/ML projects.

Also check out our blog post “Why Are There More Than 100 Million Pull Requests for AI/ML Images on Docker Hub?” to learn how Docker is providing a powerful tool for AI/ML development.

Expanding developer experiences

AtomicJar joins Docker

In December, we were excited to welcome AtomicJar, the makers of Testcontainers, to the Docker family. “Docker already accelerates the ‘inner loop’ app development steps — build, verify (through Docker Scout), run, debug, and share — and now, with AtomicJar and Testcontainers, we’re adding ‘test,’” explains Docker CEO Scott Johnston. As a result, developers using Docker will be able to deliver quality applications faster and with less effort. Read our announcement blog post and FAQ to learn more about AtomicJar and Testcontainers.

Mutagen joins Docker

In June, we announced the acquisition of Mutagen, the company behind the open source Mutagen file synchronization and networking technologies that enable high-performance remote development. The Mutagen File Sync feature of Docker Desktop takes file sharing to new heights with up to a 16.5x improvement in performance. To try it and help influence Docker’s future, sign up for the Docker Desktop Preview Program.

Microsoft Dev Box and Docker Desktop

We announced our partnership with the Microsoft Dev Box team to bring additional benefits to developer onboarding, environment set-up, security, and administration with Docker Desktop. You can navigate to the Azure Marketplace to download the Docker Desktop-Dev Box compatible image and start developing in the cloud with a native experience. Additionally, this image can be activated with your current subscription, or you can buy a Docker Business subscription directly on Azure Marketplace.

Docker and Snowflake collaboration

At Snowflake BUILD, we announced Docker Desktop with Snowpark Container Services (private preview). Watch the session to learn more about accelerating deployments of data workloads with Docker and Snowpark.

Docker in action

Customer highlights from 2023 include:

• How Tabcorp Accelerated Delivery Velocity with Docker
• How Docker Transforms Software Delivery and Empowers Developers at The Warehouse Group
• How IKEA Retail Standardizes Docker Images for Efficient Machine Learning Model Deployment
• How JW Player Secured 300 Repos in an Hour with Docker Scout
• How Kinsta Improved the End-to-End Development Experience by Dockerizing Every Step of the Production Cycle

What’s next

In October at DockerCon, Docker and Udemy announced a partnership to offer developers accessible learning paths to further their Docker education. Read the announcement blog post to learn more about what we’ve planned.

Want to dive deeper into Docker? DockerCon videos are available now on YouTube.

Do your New Year goals include expanding your Docker expertise? Watch the on-demand webinar Docker Fundamentals: Get the Most Out of Docker.

Check out our public roadmap to help steer the future of Docker.

Thank you to our community of developers, Docker Captains and Community Leaders, customers, and partners! We look forward to our continued work building our future together in the New Year.

Learn more

• Watch A Look Back at Docker in 2023 on-demand.
• Check out past and upcoming Docker events.
• Get the latest release of Docker Desktop.
• Read highlights from DockerCon 2023.
• Watch DockerCon 2023 sessions.
• Try Docker Scout.
• Explore Docker Extensions.
• Get started with Testcontainers.
• Watch the on-demand webinar Docker Fundamentals: Get the Most Out of Docker.
• Have questions? The Docker community is here to help.
• New to Docker? Get started.
• See the Docker public roadmap.

A collaborative workflow is essential for successful development — developers need a way to quickly and easily share their work, and team members need a quick way to review and provide feedback. The sooner developers can share changes and get clear feedback, the faster the feedback loop can be closed and the new code can be merged to production.

Livecycle’s Docker Extension makes it easy for developers to share their work-in-progress and collaborate with the team to get changes reviewed. With a single click, you can securely share your local development environment, and get it reviewed to ensure your code meets your team’s requirements. In this post, we provide step-by-step instructions for setting up and getting started with the Livecycle Docker Extension.

Meet Livecycle — A fast way for dev teams to collaborate

Livecycle enables development teams to collaborate faster, and in context. Generally, getting feedback on bug fixes and new features results in multiple iterations and long feedback loops between team members. Dev teams quickly struggle to have detailed discussions out of context, causing frustration and hurting productivity. Livecycle shortens the feedback loop by allowing you to share your work instantly and collect feedback immediately while everyone is still in context.

Livecycle’s open source tool, Preevy, integrates into your CI pipeline to convert your pull requests into public or private preview environments, provisioned on your cloud provider or Kubernetes cluster.

And, with the launch of our new Docker Desktop Extension, you can now do the same for your local development environment, by sharing it securely with your team and getting the review and feedback process started much earlier in the development lifecycle (Figure 1).

Architecture

The Livecycle architecture can be presented as two possible flows — one that works in the CI and the other using the Docker Extension, as follows.

When running a CI build to create a preview environment for a pull request, for example, the Preevy CLI provisions a VM on your cloud provider or a Pod on your Kubernetes cluster, and it runs a Docker server, which hosts your Docker Compose project containers.

The Preevy CLI also starts a companion container, the Preevy Agent, which creates an SSH connection to the Preevy Tunnel Server. For every published port in your Docker Compose project, an SSH tunnel is created with its own HTTPS URL. When an HTTPS request arrives at the Tunnel Server, it gets routed to your specific service according to the hostname. If the service is defined as private, the Tunnel Server also handles authentication.

When using the Livecycle Docker Extension, the same Preevy CLI (bundled in the extension) is used to start the companion Preevy Agent on the local Docker Desktop server. A public or private URL is created for every published port in your Docker Compose project.

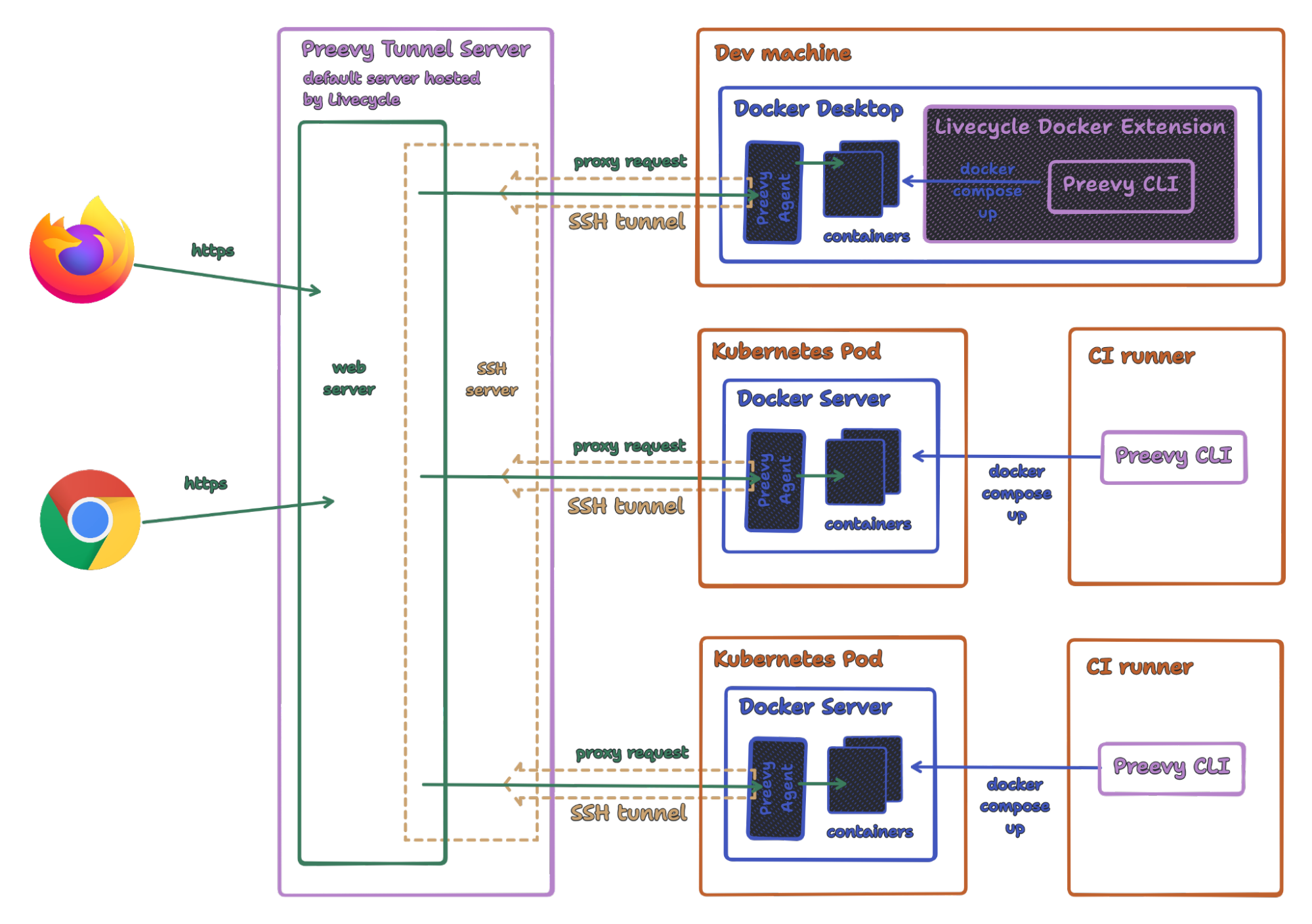

The Livecycle architecture is shown in Figure 2.

Why run Livecycle as a Docker Extension?

In the context of the development workflow, true collaboration is achieved when dev teams can share changes quickly and collect clear feedback from others on the team. If you can achieve both, you’re in excellent collaborative shape. If either the ability to share quickly or the ability to collect feedback is lacking, your team will not be able to collaborate effectively.

And that’s precisely the benefit of running Livecycle as a Docker Extension — to exploit both of these collaborative opportunities to the fullest extent possible:

• The fastest way to share changes at the earliest possible point: The Livecycle extension shares local containers without the headache of staging environments or CI builds. This is the fastest and earliest way to kick off a collaborative review cycle.
• The most convenient way to collect feedback from everyone: The Livecycle extension provides built-in review tools so anyone on the team can give technical or visual feedback in context.

More developers now see the benefits of a “shift-left” approach, and Docker’s native toolkit helps them do that. Using Livecycle as a Docker extension extends this concept further and brings a truly collaborative review cycle to an earlier part of the software development life cycle (SDLC). And that is something that can save time and also help benefit everyone on the team.

Getting started with the Livecycle Docker Extension

Getting started with the Livecycle Docker Extension is simple once you have Docker Desktop installed. Here’s a step-by-step walkthrough of the initial setup:

1. Installing the extension
Navigate to the Livecycle extension or search for “Livecycle” in the Docker Desktop Extensions Marketplace. Select Install to install the extension (Figure 3).

2. Setting up a Livecycle account

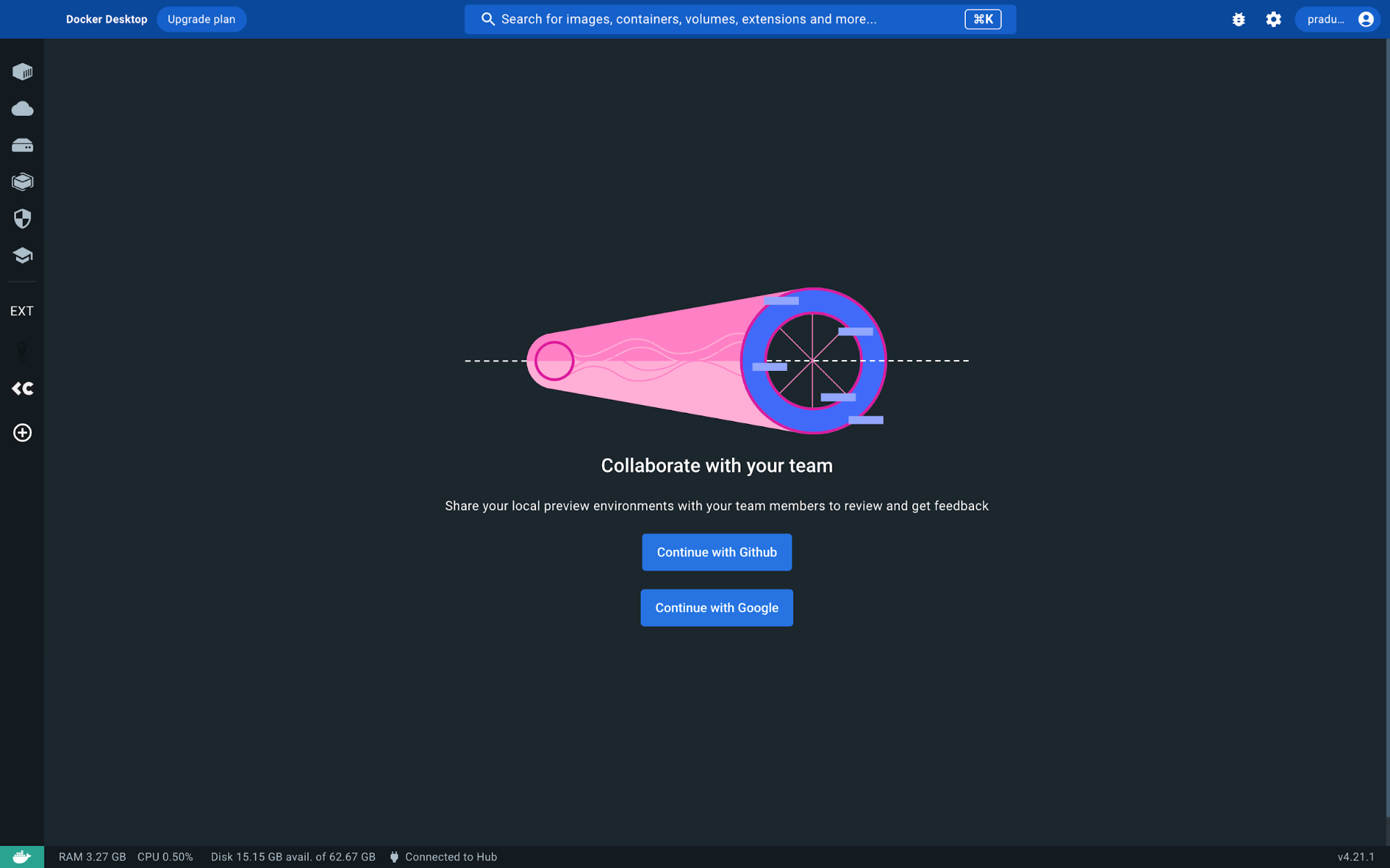

Once you have installed the extension and opened it, you will be greeted with a login screen (Figure 4). You can choose to log in with your GitHub account or Google account. If you previously used Livecycle and created an organization, you can log in with your Livecycle account.

3. Getting shareable URLs

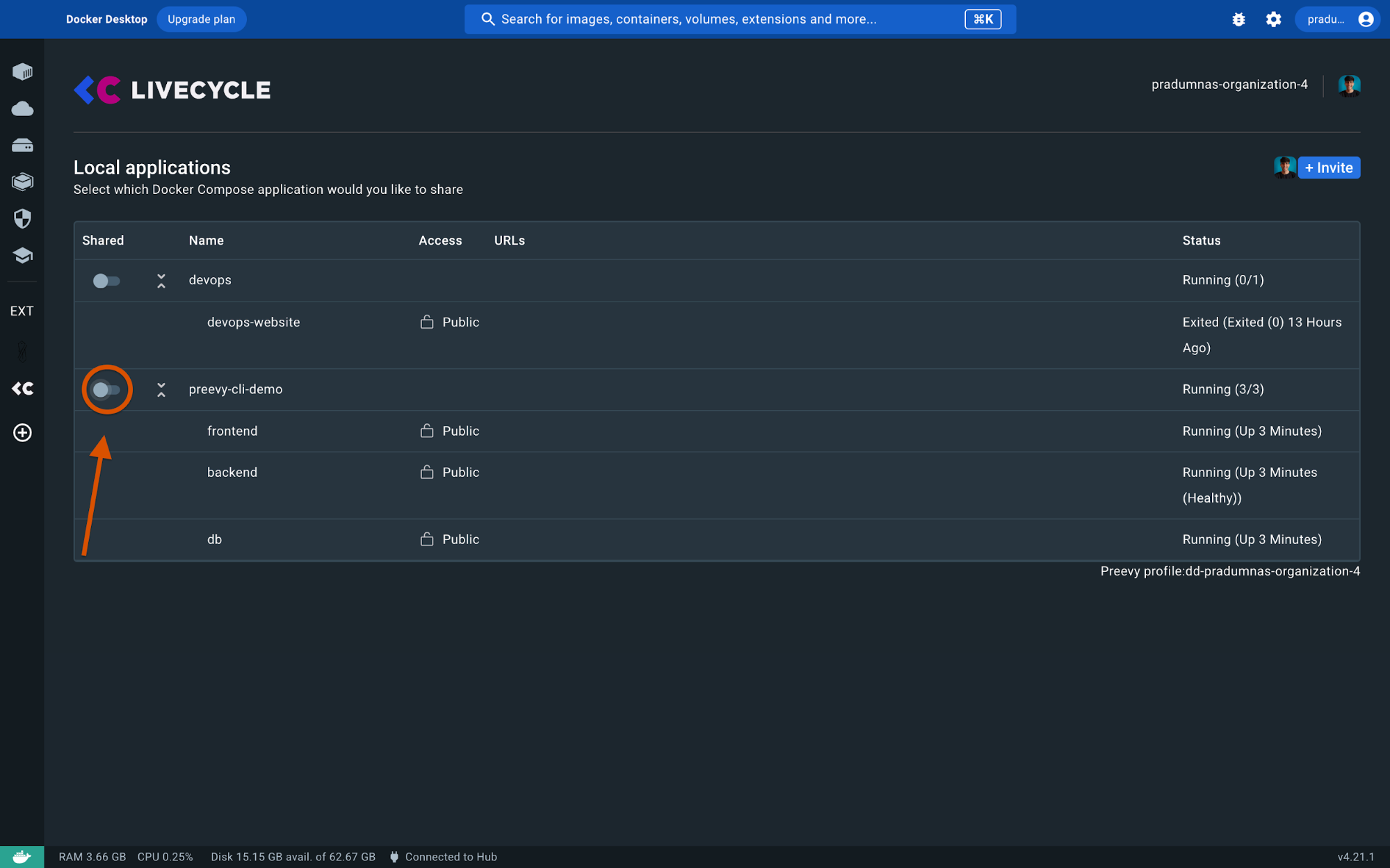

As soon as you log in, you will be shown a list of running Docker Compose applications and all the services that are running in them. To get a public shareable URL for every service, turn on the toggle next to the compose application name. After that, you will be prompted to choose the access level (Figure 5).

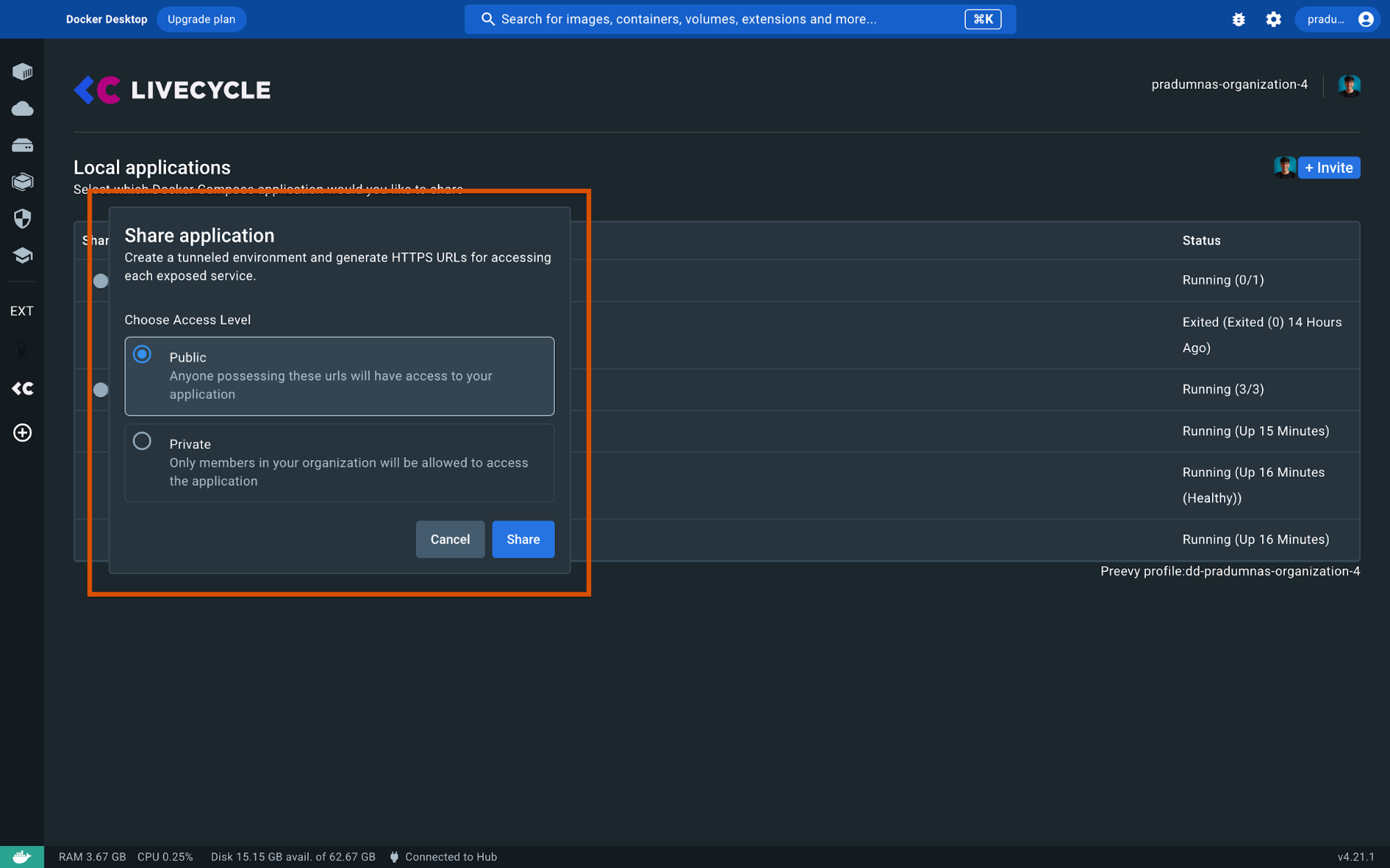

You can choose between public and private access. If you choose public access, you will get a public URL to share with anyone. If you choose private access, you will get a private URL that requires authentication and can only be used by your organization members. Then, select Share to get the shareable URL (Figure 6).

4. Accessing the shared URL

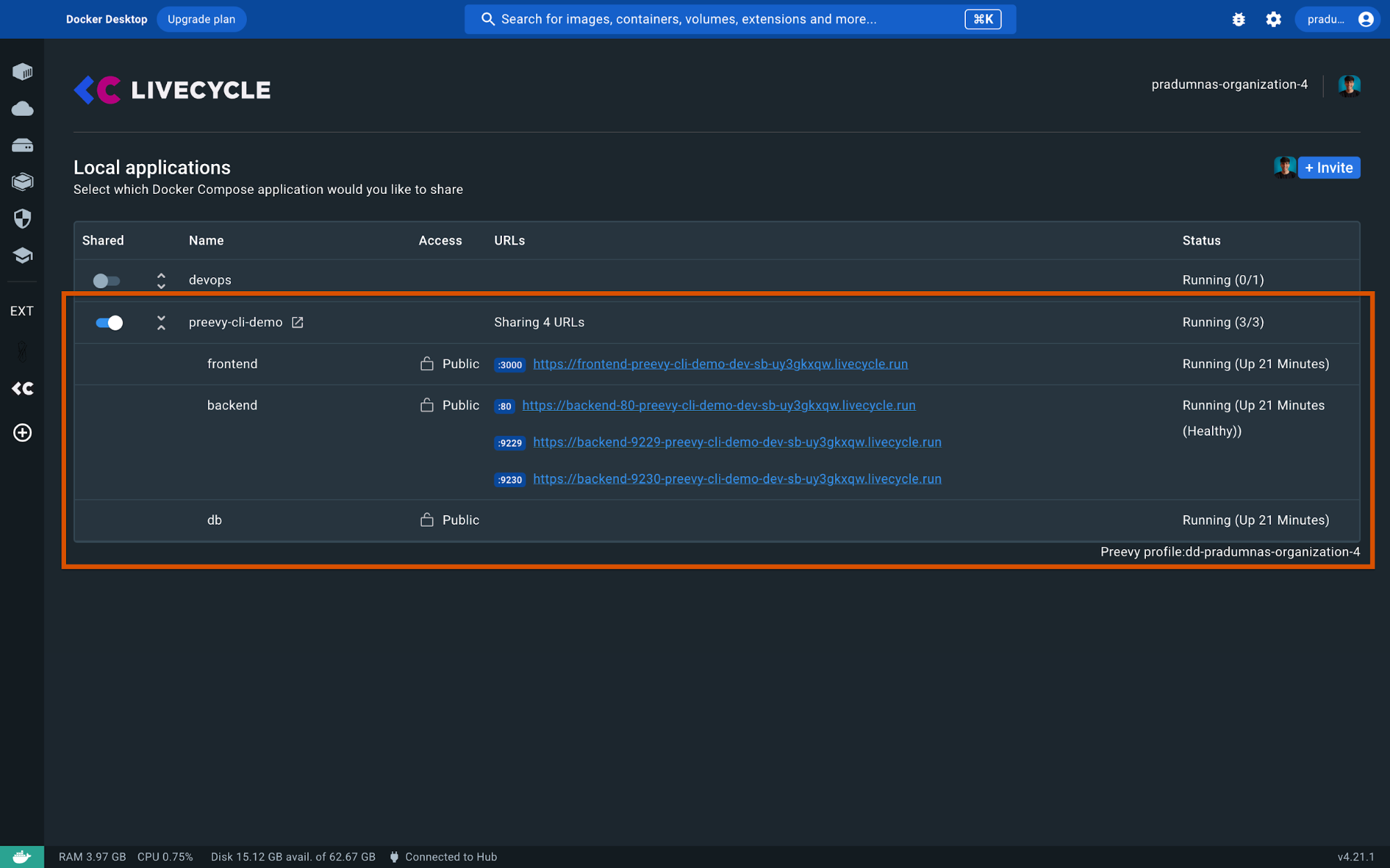

URLs created by the extension are consistent, shareable, and can be used by a browser or any other HTTP client. Using these URLs, your team members can see and interact with your local version of the app as long as the tunnel is open and your workstation is running (Figure 7).

Private environments require adding team members to your organization, and upon access, your team members will be prompted to authenticate.

5. Accessing Livecycle dashboard

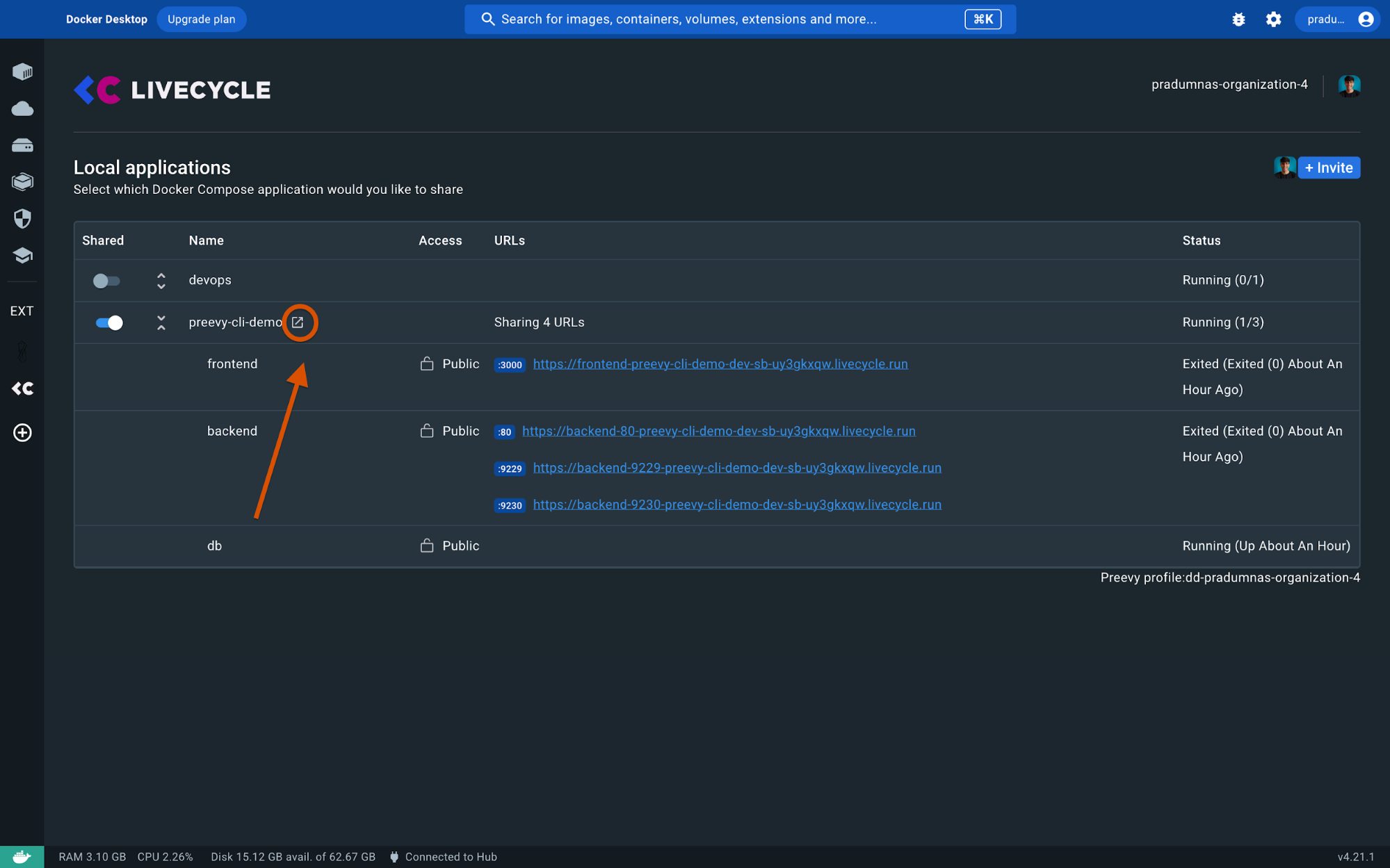

You can also access the Livecycle dashboard to see the logs and debug your application. Choose Open Link to open the Livecycle dashboard (Figure 8). On the dashboard, you can see all the running applications and services. The Livecycle dashboard requires authentication and organization membership, similarly to private environments/services.

6. Debugging, inspecting, and logging

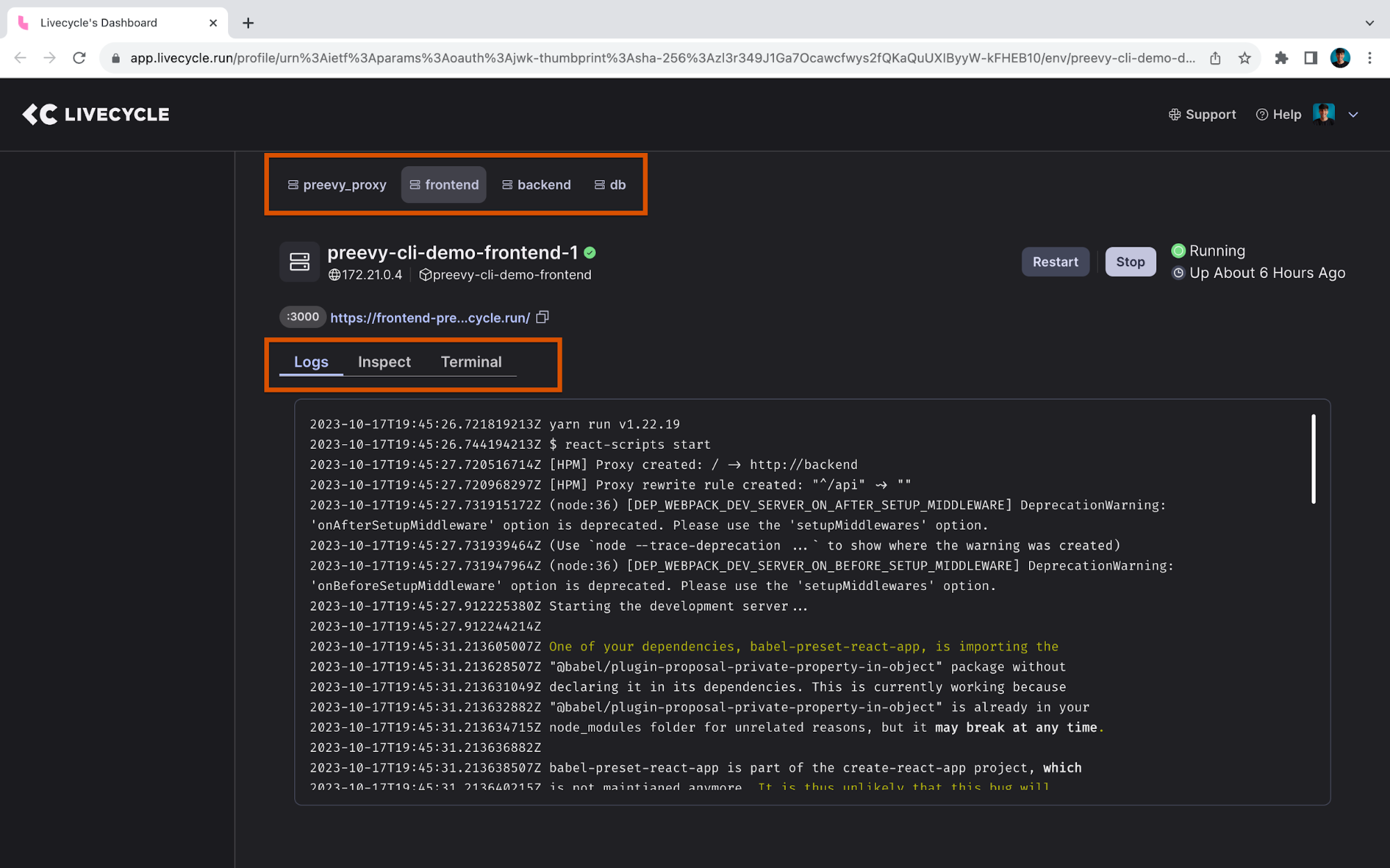

Once you have opened the Livecycle dashboard, you will see all the environments/apps that are running. Select the name of the environment for which you want to see the logs, terminal, etc. You can view the logs, terminal, and container inspection for each service (Figure 9).

That’s it! You have successfully installed the Livecycle Docker Extension and shared your local development environment with your team.

Flexibility to begin collaborating at any point

Livecycle is flexible by design and can be added to your workflow in several ways, so you can initiate collaborative reviews at any point.

Our Docker extension extends this flexibility even more by enabling teams working on dockerized applications to shift the review process much farther left than ever before — while the code is still on the developer’s machine.

This setup means that code changes, bug fixes, and new features can be reviewed instantly without the hassle of staging environments or CI builds. It also has the potential to directly impact a company’s bottom line by saving time and improving code quality.

Common use cases

Let’s look at common use cases for the Livecycle Docker Extension to illustrate its benefit to development teams.

• Instant UI Reviews: Livecycle enables collaboration between developers and non-technical stakeholders early in the workflow. Using the Livecycle extension, you can get instant feedback on the latest front-end changes you’re working on your machine.

  Opening a tunnel and creating a shareable URL enables anyone on the team to use a browser to access the relevant services securely. Designers, QA, marketing, and management can view the application and use built-in commenting and collaboration tools to leave clear, actionable feedback.


• Code reviews and debugging: Another common use case is enabling developers to work together to review and debug code changes as soon as possible. Using the Livecycle extension, you can instantly share any front-end or back-end service running on your machine.

  Your team can securely access services to see real-time logging, catch errors, and execute commands in a terminal, so you can collaboratively fix issues much earlier in the development lifecycle.

Conclusion

Livecycle’s Docker Extension makes it easy to share your work in progress and quickly collaborate with your team. And tighter feedback loops will enable you to deliver higher quality code faster.

If you’re currently using Docker for your projects, you can use the Livecycle extension to easily share them without deployment/CI dependencies.

So, go ahead and give Livecycle a try! The initial setup only takes a few minutes, and if you have any questions, we invite you to check out our documentation and reach out on our Slack channel.

Learn more

• Try the Livecycle Docker Extension.
• Get the latest release of Docker Desktop.
• Vote on what’s next! Check out our public roadmap.
• Have questions? The Docker community is here to help.
• New to Docker? Get started.

JupyterLab is a web-based interactive development environment (IDE) that allows users to create and share documents that contain live code, equations, visualizations, and narrative text. It is the latest evolution of the popular Jupyter Notebook and offers several advantages over its predecessor, including:

• A more flexible and extensible user interface: JupyterLab allows users to configure and arrange their workspace to best suit their needs. It also supports a growing ecosystem of extensions that can be used to add new features and functionality.
• Support for multiple programming languages: JupyterLab is not just for Python anymore! It can now be used to run code in various programming languages, including R, Julia, and JavaScript.
• A more powerful editor: JupyterLab’s built-in editor includes features such as code completion, syntax highlighting, and debugging, which make it easier to write and edit code.
• Support for collaboration: JupyterLab makes collaborating with others on projects easy. Documents can be shared and edited in real-time, and users can chat with each other while they work.

This article provides an overview of the JupyterLab architecture and shows how to get started using JupyterLab as a Docker extension.

Uses for JupyterLab

JupyterLab is used by a wide range of people, including data scientists, scientific computing researchers, computational journalists, and machine learning engineers. It is a powerful interactive computing and data science tool and is becoming increasingly popular as an IDE.

Here are specific examples of how JupyterLab can be used:

• Data science: JupyterLab can explore data, build and train machine learning models, and create visualizations.
• Scientific computing: JupyterLab can perform numerical simulations, solve differential equations, and analyze data.
• Computational journalism: JupyterLab can scrape data from the web, clean and prepare data for analysis, and create interactive data visualizations.
• Machine learning: JupyterLab can develop and train machine learning models, evaluate model performance, and deploy models to production.

JupyterLab can help solve problems in the following ways:

• JupyterLab provides a unified environment for developing and running code, exploring data, and creating visualizations. This can save users time and effort; they do not have to switch between different tools for different tasks.
• JupyterLab makes it easy to share and collaborate on projects. Documents can be shared and edited in real-time, and users can chat with each other while they work. This can be helpful for teams working on complex projects.
• JupyterLab is extensible. This means users can add new features and functionality to the environment using extensions, making JupyterLab a flexible tool that can be used for a wide range of tasks.

Project Jupyter’s tools are available for installation via the Python Package Index, the leading repository of software created for the Python programming language, but you can also get the JupyterLab environment up and running using Docker Desktop on Linux, Mac, or Windows.

Architecture of JupyterLab

JupyterLab follows a client-server architecture (Figure 2) where the client, implemented in TypeScript and React, operates within the user’s web browser. It leverages the Webpack module bundler to package its code into a single JavaScript file and communicates with the server via WebSockets. On the other hand, the server is a Python application that utilizes the Tornado web framework to serve the client and manage various functionalities, including kernels, file management, authentication, and authorization. Kernels, responsible for executing code entered in the JupyterLab client, can be written in any programming language, although Python is commonly used.

The client and server exchange data and commands through the WebSockets protocol. The client sends requests to the server, such as code execution or notebook loading, while the server responds to these requests and returns data to the client.

Kernels are distinct processes managed by the JupyterLab server, allowing them to execute code and send results — including text, images, and plots — to the client. Moreover, JupyterLab’s flexibility and extensibility are evident through its support for extensions, enabling users to introduce new features and functionalities, such as custom kernels, file viewers, and editor plugins, to enhance their JupyterLab experience.

JupyterLab is highly extensible. Extensions can be used to add new features and functionality to the client and server. For example, extensions can be used to add new kernels, new file viewers, and new editor plugins.

Examples of JupyterLab extensions include:

• The ipywidgets extension adds support for interactive widgets to JupyterLab notebooks.
• The nbextensions package provides a collection of extensions for the JupyterLab notebook.
• The jupyterlab-server package provides extensions for the JupyterLab server.

JupyterLab’s extensible architecture makes it a powerful tool that can be used to create custom development environments tailored to users’ specific needs.

Why run JupyterLab as a Docker extension?

Running JupyterLab as a Docker extension offers a streamlined experience to users already familiar with Docker Desktop, simplifying the deployment and management of the JupyterLab notebook.

Docker provides an ideal environment to bundle, ship, and run JupyterLab in a lightweight, isolated setup. This encapsulation promotes consistent performance across different systems and simplifies the setup process.

Moreover, Docker Desktop is the only prerequisite to running JupyterLabs as an extension. Once you have Docker installed, you can easily set up and start using JupyterLab, eliminating the need for additional software installations or complex configuration steps.

Getting started

Getting started with the Docker Desktop Extension is a straightforward process that allows developers to leverage the benefits of unified development. The extension can easily be integrated into existing workflows, offering a familiar interface within Docker. This seamless integration streamlines the setup process, allowing developers to dive into their projects without extensive configuration.

The following key components are essential to completing this walkthrough:

• Docker Desktop

Working with JupyterLabs as a Docker extension begins with opening the Docker Desktop. Here are the steps to follow (Figure 3):

• Choose Extensions in the left sidebar.
• Switch to the Browse tab.
• In the Categories drop-down, select Utility Tools.
• Find Jupyter Notebook and then select Install.

A JupyterLab welcome page will be shown (Figure 4).

Adding extra kernels

If you need to work with other languages rather than Python3 (default), you can complete a post-installation step. For example, to add the iJava kernel, launch a terminal and execute the following:

~ % docker exec -ti --user root jupyter_embedded_dd_vm /bin/sh -c "curl -s https://raw.githubusercontent.com/marcelo-ochoa/jupyter-docker-extension/main/addJava.sh | bash"

Figure 5 shows the install process output of the iJava kernel package.

Next, close your extension tab or Docker Desktop, then reopen, and the new kernel and language support will be enabled (Figure 6).

Getting started with JupyterLab

You can begin using JupyterLab notebooks in many ways; for example, you can choose the language at the welcome page and start testing your code. Or, you can upload a file to the extension using the up arrow icon found at the upper left (Figure 7).

Import a new notebook from local storage (Figures 8 and 9).

Loading JupyterLab notebook from URL

If you want to import a notebook directly from the internet, you can use the File > Open URL option (Figure 10). This page shows an example for the notebook with Java samples.

A notebook upload from URL result is shown in Figure 11.

Download a notebook to your personal folder

Just like uploading a notebook, the download operation is straightforward. Select your file name and choose the Download option (Figure 12).

A download destination option is also shown (Figure 13).

A note about persistent storage

The JupyterLab extension has a persistent volume for the /home/jovyan directory, which is the default directory of the JupyterLab environment. The contents of this directory will survive extension shutdown, Docker Desktop restart, and JupyterLab Extension upgrade. However, if you uninstall the extension, all this content will be discarded. Back up important data first.

Change the core image

This Docker extension uses a Docker image — jupyter/scipy-notebook:lab-4.0.6 (ubuntu 22.04) —  but you can choose one of the following available versions (Figure 14).

To change the extension image, you can follow these steps:

1. Uninstall the extension.
2. Install again, but do not open until the next step is done.
3. Edit the associated docker-compose.yml file of the extension. For example, on macOS, the file can be found at: Library/Containers/com.docker.docker/Data/extensions/mochoa_jupyter-docker-extension/vm/docker-compose.yml
4. Change the image name from jupyter/scipy-notebook:ubuntu-22.04 to jupyter/r-notebook:ubuntu-22.04.
5. Open the extension.

On Linux, the docker-compose.yml file can be found at: .docker/desktop/extensions/mochoa_jupyter-docker-extension/vm/docker-compose.yml

Using JupyterLab with other extensions

To use the JupyterLab extension to interact with other extensions, such as the MemGraph database (Figure 15), typical examples only require a minimal change of the host connection option. This usually means a sample notebook referrer to MemGraph host running on localhost. Because JupyterLab is another extension hosted in a different Docker stack, you have to replace localhost with host.docker.internal, which refers to the external IP of another extension. Here is an example:

URI = "bolt://localhost:7687"

needs to be replaced by:

URI = "bolt://host.docker.internal:7687"

Conclusion

The JupyterLab Docker extension is a ready-to-run Docker stack containing Jupyter applications and interactive computing tools using a personal Jupyter server with the JupyterLab frontend.

Through the integration of Docker, setting up and using JupyterLab is remarkably straightforward, further expanding its appeal to experienced and novice users alike.

The following video provides a good introduction with a complete walk-through of JupyterLab notebooks.

Learn more

• Get the latest release of Docker Desktop.
• Vote on what’s next! Check out our public roadmap.
• Have questions? The Docker community is here to help.
• New to Docker? Get started.

This article delves into the collaborative efforts of Docker and Microcks, spotlighting the emergence of the Microcks Docker Desktop Extension and its transformative impact on the development ecosystem.

What is Microcks?

Microcks is an open source Kubernetes and cloud-native tool for API mocking and testing. It has been a Cloud Native Computing Foundation Sandbox project since summer 2023.

Microcks addresses two primary use cases:

• Simulating (or mocking) an API or a microservice from a set of descriptive assets (specifications or contracts)
• Validating (or testing) the conformance of your application regarding your API specification by conducting contract-test

The unique thing about Microcks is that it offers a uniform and consistent approach for all kinds of request/response APIs (REST, GraphQL, gRPC, SOAP) and event-driven APIs (currently supporting eight different protocols) as shown in Figure 1.

Microcks speeds up the API development life cycle by shortening the feedback loop from the design phase and easing the pain of provisioning environments with many dependencies. All these features establish Microcks as a great help to enforce backward compatibility of your API of microservices interfaces.

So, for developers, Microcks brings consistency, convenience, and speed to your API lifecycle.

Why run Microcks as a Docker Desktop Extension?

Although Microcks is a powerhouse, running it as a Docker Desktop Extension takes the developer experience, ease of use, and rapid iteration in the inner loop to new levels. With Docker’s containerization capabilities seamlessly integrated, developers no longer need to navigate complex setups or wrestle with compatibility issues. It’s a plug-and-play solution that transforms the development environment into a playground for innovation.

The simplicity of running Microcks as a Docker extension is a game-changer. Developers can effortlessly set up and deploy Microcks in their existing Docker environment, eliminating the need for extensive configurations. This ease of use empowers developers to focus on what they do best — building and testing APIs rather than grappling with deployment intricacies.

In agile development, rapid iterations in the inner loop are paramount. Microcks, as a Docker extension, accelerates this process. Developers can swiftly create, test, and iterate on APIs without leaving the Docker environment. This tight feedback loop ensures developers identify and address issues early, resulting in faster development cycles and higher-quality software.

The combination of two best-of-breed projects, Docker and Microcks, provides:

• Streamlined developer experience
• Easiness at its core
• Rapid iterations in the inner loop

Extension architecture

The Microcks Docker Desktop Extension has an evolving architecture depending on your enabling features. The UI that executes in Docker Desktop manages your preferences in a ~/.microcks-docker-desktop-extension folder and starts/stops/cleans the needed containers.

At its core, the architecture (Figure 2) embeds two minimal elements: the Microcks main container and a MongoDB database. The different containers of the extension run in an isolated Docker network where only the HTTP port of the main container is bound to your local host.

Through the Settings panel offered by the extension (Figure 3), you can tune the port binding and enable more features, such as:

• The support of asynchronous APIs mocking and testing via the usefulness of AsyncAPI with Kafka and WebSocket
• The ability to run Postman collection tests in Microcks includes support for Postman testing.

When applied, your settings are persistent in your ~/.microcks-docker-desktop-extension folder, and the extension augments the initial architecture with the required services. Even though the extension starts with additional containers, they are carefully crafted and chosen to be lightweight and consume as few resources as possible. For example, we selected the Redpanda Kafka-compatible broker for its super-light experience.

The schema shown in Figure 4 illustrates such a “maximal architecture” for the extension:

The Docker Desktop Extension architecture encapsulates the convergence of Docker’s containerization capabilities and Microcks’ API testing prowess. This collaborative endeavor presents developers with a unified interface to toggle between these functionalities seamlessly. The architecture ensures a cohesive experience, enabling developers to harness the power of both Docker and Microcks without the need for constant tool switching.

Getting started

Getting started with the Docker Desktop Extension is a straightforward process that empowers developers to leverage the benefits of unified development. The extension can be easily integrated into existing workflows, offering a familiar interface within Docker. This seamless integration streamlines the setup process, allowing developers to dive into their projects without extensive configuration.

Here are the steps for installing Microcks as a Docker Desktop Extension:
1. Choose Add Extensions in the left sidebar (Figure 5).

2. Switch to the Browse tab.

3. In the Filters drop-down, select the Testing Tools category.

4. Find Microcks and then select Install (Figure 6).

Launching Microcks

The next step is to launch Microcks (Figure 7).

The Settings panel allows you to configure some options, like whether you’d like to enable the asynchronous APIs features (default is disabled) and if you’d need to set an offset to ports used to access the services (Figures 8 and 9).

Sample app deployment

To illustrate the real-world implications of the Docker Desktop Extension, consider a sample application deployment. As developers embark on local application development, the Docker Desktop Extension enables them to create, test, and iterate on their containers while leveraging Microcks’ API mocking and testing capabilities.

This combined approach ensures that the application’s containerization and API aspects are thoroughly validated, resulting in a higher quality end product. Check out the three-minute “Getting Started with Microcks Docker Desktop Extension” video for more information.

Conclusion

The Docker and Microcks partnership, exemplified by the Docker Desktop Extension, signifies a milestone in collaborative software development. By harmonizing containerization and API testing, this collaboration addresses the challenges of fragmented workflows, accelerating development cycles and elevating the quality of applications.

By embracing the capabilities of Docker and Microcks, developers are poised to embark on a journey characterized by efficiency, reliability, and collaborative synergy.

Remember that Microcks is a Cloud Native Computing Sandbox project supported by an open community, which means you, too, can help make Microcks even greater. Come and say hi on our GitHub discussion or Zulip chat 🐙, send some love through GitHub stars ⭐️, or follow us on Twitter, Mastodon, LinkedIn, and our YouTube channel.

Learn more

• Try the Microcks Docker Extension.
• Learn about Docker Extensions.
• Get the latest release of Docker Desktop.
• Vote on what’s next! Check out our public roadmap.
• Have questions? The Docker community is here to help.
• New to Docker? Get started.

What sets Memgraph apart is its high-speed data processing ability, delivering performance that makes it significantly faster than other graph databases. This, however, is not achieved at the expense of data integrity or reliability. Memgraph is committed to providing accurate and dependable insights as fast as you need them.

Built entirely on a C++ codebase, Memgraph leverages in-memory storage to handle complex real-time use cases effectively. Support for ACID transactions guarantees data consistency, while the Cypher query language offers a robust toolset for data structuring, manipulation, and exploration.

Graph databases have a broad spectrum of applications. In domains as varied as cybersecurity, credit card fraud detection, energy management, and network optimization, Memgraph can efficiently analyze and traverse complex network structures and relationships within data. This analytical prowess facilitates real-time, in-depth revelations across a broad spectrum of industries and areas of study.

In this article, we’ll show how using Memgraph as a Docker Extension offers a powerful and efficient way to leverage real-time analytics from a graph database.

Architecture of Memgraph

The high-speed performance of Memgraph can be attributed to its unique architecture (Figure 1). Centered around graph models, the database represents data as nodes (entities) and edges (relationships), enabling efficient management of deeply interconnected data essential for a range of modern applications.

In terms of transactions, Memgraph upholds the highest standard. It uses the standardized Cypher query language over the Bolt protocol, facilitating efficient data structuring, manipulation, and exploration.

The key components of Memgraph’s architecture are:

• In-memory storage: Memgraph stores data in RAM for low-latency access, ensuring high-speed data retrieval and modifications. This is critical for applications that require real-time insights.
• Transaction processing: Memgraph supports ACID (Atomicity, Consistency, Isolation, Durability) transactions, which means it guarantees that all database transactions are processed reliably and in a way that ensures data integrity, including when failures occur.
• Query engine: Memgraph uses Cypher, a popular graph query language that’s declarative and expressive, allowing for complex data relationships to be easily retrieved and updated.
• Storage engine: While Memgraph primarily operates in memory, it also provides a storage engine that takes care of data durability by persisting data on disk. This ensures that data won’t be lost even if the system crashes or restarts.
• High availability and replication: Memgraph’s replication architecture can automatically replicate data across multiple machines, and it supports replication to provide high availability and fault tolerance.
• Streaming and integration: Memgraph can connect with various data streams and integrate with different types of data sources, making it a versatile choice for applications that need to process and analyze real-time data.

To provide users with the utmost flexibility and control, Memgraph comprises several key components, each playing a distinct role in delivering seamless performance and user experience:

• MemgraphDB — MemgraphDB is the heart of the Memgraph system. It deals with all concurrency problems, consistency issues, and scaling, both in terms of data and algorithm complexity. Using the Cypher query language, MemgraphDB allows users to query data and run algorithms. It also supports both push and pull operations, which means you can query data and run algorithms and get notified when something changes in the data.
• Mgconsole — mgconsole is a command-line interface (CLI) used to interact with Memgraph from any terminal or operating system.
• Memgraph Lab — Memgraph Lab is a visual user interface for running queries and visualizing graph data. It provides a more interactive experience, enabling users to apply different graph styles, import predefined datasets, and run example queries. It makes data analysis and visualization more intuitive and user-friendly.
• MAGE (Memgraph Advanced Graph Extensions) — MAGE is an open source library of graph algorithms and custom Cypher procedures. It enables high-performance processing of demanding graph algorithms on streaming data. With MAGE, users can run a variety of algorithms, from PageRank or community detection to advanced machine learning techniques using graph embeddings. Moreover, MAGE does not limit users to a specific programming language.

Based on those four components, Memgraph offers four different Docker images:

• memgraph-platform — Installs MemgraphDB, mgconsole, Memgraph Lab, and MAGE
• memgraph-mage — Installs MemgraphDB, mgconsole, and MAGE
• memgraph — Installs MemgraphDB and mgconsole
• MAGE × NVIDIA cuGraph — Installs everything that you need to run MAGE in combination with NVIDIA cuGraph

With more than 10K downloads from Docker Hub, Memgraph Platform is the most popular Memgraph Docker image, so the team decided to base the Memgraph Docker extension on it. Instructions are available in the documentation if you want to use any of the other images. Let’s look at how to install Memgraph Docker Extension.

Why run Memgraph as a Docker Extension?

Running Memgraph as a Docker Extension offers a streamlined experience to users who are already familiar with Docker Desktop, simplifying the deployment and management of the graph database. Docker provides an ideal environment to bundle, ship, and run Memgraph in a lightweight, isolated setup. This encapsulation not only promotes consistent performance across different systems but also simplifies the setup process.

Moreover, Docker Desktop is the only prerequisite to run Memgraph as an extension. This means that once you have Docker installed, you can easily set up and start using Memgraph, eliminating the need for additional software installations or complex configuration steps.

Getting started

Working with Memgraph as a Docker Extension begins with opening the Docker Desktop (Figure 2). Here are the steps to follow:

1. Choose Extensions in the left sidebar.
2. Switch to the Browse tab.
3. In the Filters drop-down, select the Database category.
4. Find Memgraph and then select Install.

That’s it! Once the installation is finished, select Connect now (Figure 3).

What you see now is Memgraph Lab, a visual user interface designed for running queries and visualizing graph data. With a range of pre-prepared datasets, Memgraph Lab provides an ideal starting point for exploring Memgraph, gaining proficiency in Cypher querying, and effectively visualizing query results.

Importing the Pandora Papers datasets

For the purposes of this article, we will import the Pandora Papers dataset. To import the dataset, choose Datasets in the Memgraph Lab sidebar and then Load Dataset (Figure 4).

Once the dataset is loaded, select Explore Query Collection to access a selection of predefined queries (Figure 5).

Choose one of the queries and select Run Query (Figure 6).

And voilà! Welcome to the world of graphs. You now have the results of your query (Figure 7). Now that you’ve run your first query, feel free to explore other queries in the Query Collection, import a new dataset, or start adding your own data to the database.

Conclusion

Memgraph, as a Docker Extension, offers an accessible, powerful, and efficient solution for anyone seeking to leverage real-time analytics from a graph database. Its unique architecture, coupled with a streamlined user interface and a high-speed query engine, allows developers and data scientists to extract immediate, actionable insights from complex, interconnected data.

Moreover, with the integration of Docker, the setup and use of Memgraph become remarkably straightforward, further expanding its appeal to both experienced and novice users alike. The best part is the variety of predefined datasets and queries provided by the Memgraph team, which serve as excellent starting points for users new to the platform.

Whether you’re diving into the world of graph databases for the first time or are an experienced data professional, Memgraph’s Docker Extension offers an intuitive and efficient solution. So, go ahead and install it on Docker Desktop and start exploring the intriguing world of graph databases today. If you have any questions about Memgraph, feel free to join Memgraph’s vibrant community on Discord.

Learn more

• Install Memgraph’s Docker Extension.
• Get the latest release of Docker Desktop.
• Vote on what’s next! Check out our public roadmap.
• Have questions? The Docker community is here to help.
• New to Docker? Get started.

The latest version, JupyterLab 4.0, was released in early June. Compared to its predecessors, this version features a faster Web UI, improved editor performance, a new Extension Manager, and real-time collaboration.

If you have already installed the standalone 3.x version, evaluating the new features will require rewriting your current environment, which can be labor-intensive and risky. However, in environments where Docker operates, such as Docker Desktop, you can start an isolated JupyterLab 4.0 in a container without affecting your installed JupyterLab environment. Of course, you can run these without impacting the existing environment and access them on a different port.

In this article, we show how to quickly evaluate the new features of JupyterLab 4.0 using Jupyter Docker Stacks on Docker Desktop, without affecting the host PC side.

Why containerize JupyterLab?

Users have downloaded the base image of JupyterLab Notebook stack Docker Official Image more than 10 million times from Docker Hub. What’s driving this significant download rate? There’s an ever-increasing demand for Docker containers to streamline development workflows, while allowing JupyterLab developers to innovate with their choice of project-tailored tools, application stacks, and deployment environments. Our JupyterLab notebook stack official image also supports both AMD64 and Arm64/v8 platforms.

Containerizing the JupyterLab environment offers numerous benefits, including the following:

• Containerization ensures that your JupyterLab environment remains consistent across different deployments. Whether you’re running JupyterLab on your local machine, in a development environment, or in a production cluster, using the same container image guarantees a consistent setup. This approach helps eliminate compatibility issues and ensures that your notebooks behave the same way across different environments.
• Packaging JupyterLab in a container allows you to easily share your notebook environment with others, regardless of their operating system or setup. This eliminates the need for manually installing dependencies and configuring the environment, making it easier to collaborate and share reproducible research or workflows. And this is particularly helpful in AI/ML projects, where reproducibility is crucial.
• Containers enable scalability, allowing you to scale your JupyterLab environment based on the workload requirements. You can easily spin up multiple containers running JupyterLab instances, distribute the workload, and take advantage of container orchestration platforms like Kubernetes for efficient resource management. This becomes increasingly important in AI/ML development, where resource-intensive tasks are common.

Getting started

To use JupyterLab on your computer, one option is to use the JupyterLab Desktop application. It’s based on Electron, so it operates with a GUI on Windows, macOS, and Linux. Indeed, using JupyterLab Desktop makes the installation process fairly simple. In a Windows environment, however, you’ll also need to set up the Python language separately, and, to extend the capabilities, you’ll need to use pip to set up packages.

Although such a desktop solution may be simpler than building from scratch, we think the combination of Docker Desktop and Docker Stacks is still the more straightforward option. With JupyterLab Desktop, you cannot mix multiple versions or easily delete them after evaluation. Above all, it does not provide a consistent user experience across Windows, macOS, and Linux.

On a Windows command prompt, execute the following command to launch a basic notebook:

docker container run -it --rm -p 10000:8888 jupyter/base-notebook

This command utilizes the jupyter/base-notebook Docker image, maps the host’s port 10000 to the container’s port 8888, and enables command input and a pseudo-terminal. Additionally, an option is added to delete the container once the process is completed.

After waiting for the Docker image to download, access and token information will be displayed on the command prompt as follows. Here, rewrite the URL http://127.0.0.1:8888 to http://127.0.0.1:10000 and then append the token to the end of this URL. In this example, the output will look like this:

• Displayed on screen: http://127.0.0.1:8888/lab?token=6e302b2c99d56f1562e082091f4a3236051fb0a4135e10bb
• To be entered in the browser address: http://127.0.0.1:10000/lab?token=6e302b2c99d56f1562e082091f4a3236051fb0a4135e10bb

Note that this token is specific to my environment, so copying it will not work for you. You should replace it with the one actually displayed on your command prompt.

Then, after waiting for a short while, JupyterLab will launch (Figure 1). From here, you can start a Notebook, access Python’s console environment, or utilize other work environments.

The port 10000 on the host side is mapped to port 8888 inside the container, as shown in Figure 2.

In the Password or token input form on the screen, enter the token displayed in the command line or in the container logs (the string following token=), and select Log in, as shown in Figure 3.

By the way, in this environment, the data will be erased when the container is stopped. If you want to reuse your data even after stopping the container, create a volume by adding the -v option when launching the Docker container.

To stop this container environment, click CTRL-C on the command prompt, then respond to the Jupyter server’s prompt Shutdown this Jupyter server (y/[n])? with y and press enter. If you are using Docker Desktop, stop the target container from the Containers.

Shutdown this Jupyter server (y/[n])? y
[C 2023-06-26 01:39:52.997 ServerApp] Shutdown confirmed
[I 2023-06-26 01:39:52.998 ServerApp] Shutting down 5 extensions
[I 2023-06-26 01:39:52.998 ServerApp] Shutting down 1 kernel
[I 2023-06-26 01:39:52.998 ServerApp] Kernel shutdown: 653f7c27-03ff-4604-a06c-2cb4630c098d

Once the display changes as follows, the container is terminated and the data is deleted.

When the container is running, data is saved in the /home/jovyan/work/ directory inside the container. You can either bind mount this as a volume or allocate it as a volume when starting the container. By doing so, even if you stop the container, you can use the same data again when you restart the container:

docker container run -it -p 10000:8888 \
    -v “%cd%”:/home/jovyan/work \
    jupyter/base-notebook

Note: The \ symbol signifies that the command line continues on the command prompt. You may also write the command in a single line without using the \ symbol. However, in the case of Windows command prompt, you need to use the ^ symbol instead.

With this setup, when launched, the JupyterLab container mounts the /work/ directory to the folder where the docker container run command was executed. Because the data persists even when the container is stopped, you can continue using your Notebook data as it is when you start the container again.

Plotting using the famous Iris flower dataset

In the following example, we’ll use the Iris flower dataset, which consists of 150 records in total, with 50 samples from each of three types of Iris flowers (Iris setosa, Iris virginica, Iris versicolor). Each record consists of four numerical attributes (sepal length, sepal width, petal length, petal width) and one categorical attribute (type of iris). This data is included in the Python library scikit-learn, and we will use matplotlib to plot this data.

When trying to input the sample code from the scikit-learn page (the code is at the bottom of the page, and you can copy and paste it) into iPython, the following error occurs (Figure 4).

This is an error message on iPython stating that the “matplotlib” module does not exist. Additionally, the “scikit-learn” module is needed.

To avoid these errors and enable plotting, run the following command. Here, !pip signifies running the pip command within the iPython environment:

!pip install matplotlib scikit-learn

By pasting and executing the earlier sample code in the next cell on iPython, you can plot and display the Iris dataset as shown in Figure 5.

Note that it can be cumbersome to use the !pip command to add modules every time. Fortunately, you can add also add modules in the following ways:

• By creating a dedicated Dockerfile
• By using an existing group of images called Jupyter Docker Stacks

Building a Docker image

If you’re familiar with Dockerfile and building images, this five-step method is easy. Also, this approach can help keep the Docker image size in check.

Step 1. Creating a directory

To build a Docker image, the first step is to create and navigate to the directory where you’ll place your Dockerfile and context:

mkdir myjupyter && cd myjupyter

Step 2. Creating a requirements.txt file

Create a requirements.txt file and list the Python modules you want to add with the pip command:

matplotlib
scikit-learn

Step 3. Writing a Dockerfile

FROM jupyter/base-notebook
COPY ./requirements.txt /home/jovyan/work
RUN python -m pip install --no-cache -r requirements.txt

This Dockerfile specifies a base image jupyter/base-notebook, copies the requirements.txt file from the local directory to the /home/jovyan/work directory inside the container, and then runs a pip install command to install the Python packages listed in the requirements.txt file.

Step 4. Building the Docker image

docker image build -t myjupyter

Step 5. Launching the container

docker container run -it -p 10000:8888 \
    -v “%cd%”:/home/jovyan/work \
    myjupyter

Here’s what each part of this command does:

• The docker run command instructs Docker to run a container.
• The -it  option attaches an interactive terminal to the container.
• The -p 10000:8888 maps port 10000 on the host machine to port 8888 inside the container. This allows you to access Jupyter Notebook running in the container via http://localhost:10000 in your web browser.
• The -v "%cd%":/home/jovyan/work mounts the current directory (%cd%) on the host machine to the /home/jovyan/work directory inside the container. This enables sharing files between the host and the Jupyter Notebook.

In this example, myjupyter is the name of the Docker image you want to run. Make sure you have the appropriate image available on your system. The operation after startup is the same as before. You don’t need to add libraries with the !pip command because the necessary libraries are included from the start.

How to use Jupyter Docker Stacks’ images

To execute the JupyterLab environment, we will utilize a Docker image called jupyter/scipy-notebook from the Jupyter Docker Stacks. Please note that the running Notebook will be terminated. After entering Ctrl-C on the command prompt, enter y and specify the running container.

Then, enter the following to run a new container:

docker container run -it -p 10000:8888 \
    -v “%cd%”:/home/jovyan/work \
    jupyter/scipy-notebook

​​This command will run a container using the jupyter/scipy-notebook image, which provides a Jupyter Notebook environment with additional scientific libraries.

Here’s a breakdown of the command:

• The docker run command starts a new container.
• The -it option attaches an interactive terminal to the container.
• The -p 10000:8888 maps port 10000 on the host machine to port 8888 inside the container, allowing access to Jupyter Notebook at http://localhost:10000.
• The -v "$(pwd)":/home/jovyan/work mounts the current directory ($(pwd)) on the host machine to the /home/jovyan/work directory inside the container. This enables sharing files between the host and the Jupyter Notebook.
• The jupyter/scipy-notebook is the name of the Docker image used for the container. Make sure you have this image available on your system.

The previous JupyterLab image was a minimal Notebook environment. The image we are using this time includes many packages used in the scientific field, such as numpy and pandas, so it may take some time to download the Docker image. This one is close to 4GB in image size.

Once the container is running, you should be able to run the Iris dataset sample immediately without having to execute pip like before. Give it a try.

Some images include TensorFlow’s deep learning library, ones for the R language, Julia programming language, and Apache Spark. See the image list page for details.

In a Windows environment, you can easily run and evaluate the new version of JupyterLab 4.0 using Docker Desktop. Doing so will not affect or conflict with the existing Python language environment. Furthermore, this setup provides a consistent user experience across other platforms, such as macOS and Linux, making it the ideal solution for those who want to try it.

Conclusion

By containerizing JupyterLab with Docker, AI/ML developers gain numerous advantages, including consistency, easy sharing and collaboration, and scalability. It enables efficient management of AI/ML development workflows, making it easier to experiment, collaborate, and reproduce results across different environments. With JupyterLab 4.0 and Docker, the possibilities for supercharging your AI/ML development are limitless. So why wait? Embrace containerization and experience the true power of JupyterLab in your AI/ML projects.

References

• JupyterLab documentation
• Docker Stacks documentation

Learn more

• Get the latest release of Docker Desktop.
• Vote on what’s next! Check out our public roadmap.
• Have questions? The Docker community is here to help.
• New to Docker? Get started.

Giving developers speed, security, and choice

While we’re pleased with this recognition, for us it means we cannot slow down: We need to go even faster in our effort to serve developers. In what ways? Well, our developer community tells us they value speed, security, and choice:

• Speed: Developers want to maximize their time writing code for their app — and minimize set-up and overhead — so they can ship early and often.
• Security: Specifically, non-intrusive, informative, and actionable security. Developers want to catch and fix vulnerabilities right now when coding in their “inner loop,” not 30 minutes later in CI or seven days later in production.
• Choice: Developers want the freedom to explore new technologies and select the right tool for the right job and not be constrained to use lowest-common-denominator technologies in “everything-but-the-kitchen-sink” monolithic tools.

And indeed, these are the “North Stars” that inform our roadmap and prioritize our product development efforts. Recent examples include:

Speed

• Docker Init: Automatically generates Dockerfiles and docker-compose.yml files for Python, Node, and Go apps.
• VirtioFS support: 98% reduction in database import time.
• Docker Compose file watch: Automatically detects and syncs local host code changes with the container.
• vpnkit => gVisor: 5X faster container-to-host networking performance.

Security

• Docker Scout: Automatically detects vulnerabilities and recommends fixes while devs are coding in their “inner loop.”
• Attestations: Docker Build automatically generates SBOMs and SLSA Provenance and attaches them to the image.

Choice

• Docker Extensions: Launched just over a year ago, and since then, partners and community members have created and published to Docker Hub more than 700 Docker Extensions for a wide range of developer tools covering Kubernetes app development, security, observability, and more.
• Docker-Sponsored Open Source Projects: Available 100% for free on Docker Hub, this sponsorship program supports more than 600 open source community projects.
• Multiple architectures: A single docker build command can produce an image that runs on multiple architectures, including x86, ARM, RISC-V, and even IBM mainframes.

What’s next?

While we’re pleased that our efforts have been well-received by our developer community, we’re not slowing down. So many exciting changes in our industry today present us with new opportunities to serve developers.

For example, the lines between the local developer laptop and the cloud are becoming increasingly blurred. This offers opportunities to combine the power of the cloud with the convenience and low latency of local development. Another example is AI/ML. Specifically, LLMs in feedback loops with users offer opportunities to automate more tasks to further reduce the toil on developers.

Watch these spaces — we’re looking forward to sharing more with you soon.

Thank you!

Docker only exists because of our community of developers, Docker Captains and Community Leaders, customers, and partners, and we’re grateful for your on-going support as reflected in this year’s Stack Overflow survey results. On behalf of everyone here at Team Docker: THANK YOU. And we look forward to continuing to build the future together with you.

Learn more

• Get the latest release of Docker Desktop.
• Vote on what’s next! Check out our public roadmap.
• Have questions? The Docker community is here to help.
• New to Docker? Get started.

Observability has made a huge leap in recent years, and advanced technologies such as OpenTelemetry (OTEL) and eBPF have simplified the process of collecting runtime data for applications. Yet, for all that progress, developers may still be on the fence about whether and how to use this new resource. The effort required to transform the raw data into something meaningful and beneficial for the development process may seem to outweigh the advantages offered by these technologies.

The practice of continuous feedback envisions a development flow in which this particular problem has been solved. By making the evaluation of code runtime data continuous, developers can benefit from shorter feedback loops and tighter control of their codebase. Instead of waiting for issues to develop in production systems, or even surface in testing, various developer tools can watch the code observability data for you and provide early warning and rigorous linting for regressions, code smells, or issues.

At the same time, gathering information back into the code from multiple deployment environments, such as the test or production environment, can help developers understand how a specific function, query, or event is performing in the real world at a single glance.

Meet Digma, the first linter for your runtime data

Digma is a free developer tool that was created to bridge the continuous feedback gap in the DevOps loop. It aims to make sense of the gazillion metrics traces and logs the code is spewing out — so that developers won’t have to. And, it does this continuously and automatically.

To make the tool even more practical, Digma processes the observability data and uses it to lint the source code itself, right in the IDE. From a developer’s perspective, this means a whole new level of information about the code is revealed — allowing for better code design based on real-world feedback, as well as quick turnaround for fixing regression or avoiding common pitfalls and anti-patterns.

How Digma is deployed

Digma is packaged as a self-contained Docker extension to make it easy for developers to evaluate their code without registration to an external service or sharing any data that might not be allowed by corporate policy (Figure 1). As such, Digma acts as your own intelligent agent for monitoring code execution, especially in development and testing. The backend component is able to track execution over time and highlight any inadvertent changes to behavior, performance, or error patterns that should be addressed.

To collect data about the code, behind the scenes Digma leverages OpenTelemetry, a widely used open standard for modern observability. To make getting started easier, Digma takes care of the configuration work for you, so from the developer’s point of view, getting started with continuous feedback is equivalent to flipping a switch.

Once the information is collected using OTEL, Digma runs it through what could be described as a reverse pipeline, aggregating the data, analyzing it and providing it via an API to multiple outlets including the IDE plugin, Jaeger, and the Docker extension dashboard that we’ll describe in this example.

Note: Currently, Digma supports Java applications running on IntelliJ IDEA; however, support for additional languages and platforms will be rolling out in the coming months.

Installing Digma

Prerequisites: Docker Desktop 4.8 or later.

Note: You must ensure that the Docker Extension is enabled (Figure 2).

Step 1. Installing the Digma Docker Extension

In the Extensions Marketplace, search for Digma and select Install (Figure 3).

Step 2. Collecting feedback about your code

After installing the Digma extension from the marketplace, you’ll be directed to a quickstart page that will guide you through the next steps to collect feedback about your code. Digma can collect information from two different sources:

• Your tests/debug sessions within the IDE
• Any Docker containers you may have running in Docker desktop

Getting feedback while debugging/running code in the IDE

Digma’s IDE extension makes the process of collecting data about your code in the IDE trivial. The entire setup is reduced to a single toggle button click (Figure 4). Behind the scenes, Digma adds variables to the runtime configuration, so that it uses OpenTelemetry for observability. No prior knowledge or observability is needed, and no code changes are necessary to get this to work.

With the observability toggle enabled, you’ll start getting immediate feedback as you run your code locally, or even when you execute your tests. Digma will be on the lookout for any regressions and will automatically spot code smells and issues.

Getting feedback from running containers

In addition to the IDE, you can also choose to collect data from any running container on your machine running Java code. The process to do that is extremely simple and also documented in the Digma extension Getting Started page. It does not involve changing any Dockerfile or code. Basically, you download the OTEL agent, mount it to a volume on the container, and set some environment variables that point the Java process to use it.

curl --create-dirs -O -L --output-dir ./otel
https://github.com/open-telemetry/opentelemetry-java-instrumentation/releases/latest/download/opentelemetry-javaagent.jar

curl --create-dirs -O -L --output-dir ./otel
https://github.com/digma-ai/otel-java-instrumentation/releases/latest/download/digma-otel-agent-extension.jar

export JAVA_TOOL_OPTIONS="-javaagent:/otel/javaagent.jar -Dotel.exporter.otlp.endpoint=http://localhost:5050 -Dotel.javaagent.extensions=/otel/digma-otel-agent-extension.jar"
export OTEL_SERVICE_NAME={--ENTER YOUR SERVICE NAME HERE--}
export DEPLOYMENT_ENV=LOCAL_DOCKER

docker run -d -v "/$(pwd)/otel:/otel" --env JAVA_TOOL_OPTIONS --env OTEL_SERVICE_NAME --env DEPLOYMENT_ENV {-- APPEND PARAMS AND REPO/IMAGE --}

Uncovering how the code behaves in runtime

Whether you collect data from running containers or in the IDE, Digma will continuously analyze the code behavior and make the analysis results available both as code annotations in the IDE and as dashboards in the Digma extension itself. To demonstrate a live example, we’ve created a sample application based on the Java Spring Boot PetClinic app.

In this scenario, we’ll clone the repo and run the code from the IDE, triggering a few actions to see what they reveal about the code. For convenience, we’ve created run configurations to simulate common API calls and create interesting data:

1. Open the PetClinic project here in your IntelliJ IDE.
2. Run the petclinic-service configuration.
3. Access the API and play around with it on http://localhost:9753/ or simply run the ClientTested run config included in the workspace.

Almost immediately, the result of the dynamic linting analysis will start appearing over the code in the IDE (Figure 5):

At the same time, the Digma extension itself will present a dashboard cataloging all of the assets that have been identified, including code locations, API endpoints, database queries, and more (Figure 6). For each asset, you’ll be able to access basic statistics about its performance as well as a more detailed list of issues of concern that may need to be tracked about their runtime behavior.

Using the observability data

One of the main problems Digma tries to solve is not how to collect observability data but how to turn it into a useful and practical asset that can speed up development processes and improve the code. Digma’s insights can be directly applied during design time, based on existing data, as well as to validate changes as they are being run in dev/test/prod and to get early feedback and shorter loops into the development process.

Examples of design time planning code insights:

• See runtime usage for the modified functions and understand who will be affected by the change
• Concurrency to plan for, bottlenecks and criticality
• Existing errors and exceptions that need to be handled by the new component
• See complete visualization of the flow of control using the modified code

Examples of runtime code validations for shorter feedback loops:

• Catch code and query modeling smells, such as N+1 Selects, are detected and highlighted
• Identify new performance bottlenecks and regressions as a result of the changes
• Spot scaling issues earlier and address them as a part of the dev cycle

As Digma evolves, it continues to track and provide clear visibility into specific areas that are important to developers with the goal of having complete clarity about how each piece of code is behaving in real-world scenarios and catching issues and regressions much earlier in the process.

Who should use Digma?

Unlike many other observability solutions, Digma is code first and developer first. Digma is completely free for developers, does not require any code changes or sharing data, and will get you from zero to impactful data about your code within minutes.  If you are working on Java code, use the JetBrains IDE, and you want to improve your code with actual execution data, you can get started by picking up the Digma extension from the marketplace.

You can provide feedback in our Slack channel and tell us where Digma improved your dev cycle.

Picture this scenario: You have a locally hosted web application that you need to test thoroughly, but accessing it remotely for testing purposes seems like an insurmountable task. This is where the Grafana Cloud Docker Extension comes to the rescue. This extension offers a seamless solution to the problem by establishing a secure connection between your local environment and the Grafana Cloud platform.

In this article, we’ll explore the benefits of using the Grafana Cloud Docker Extension and describe how it can bridge the gap between your local machine and the remote Grafana Cloud platform.

Overview of Grafana Cloud

Grafana Cloud is a fully managed, cloud-hosted observability platform ideal for cloud-native environments. With its robust features, wide user adoption, and comprehensive documentation, Grafana Cloud is a leading observability platform that empowers organizations to gain insights, make data-driven decisions, and ensure the reliability and performance of their applications and infrastructure.

Grafana Cloud is an open, composable observability stack that supports various popular data sources, such as Prometheus, Elasticsearch, Amazon CloudWatch, and more (Figure 1). By configuring these data sources, users can create custom dashboards, set up alerts, and visualize their data in real-time. The platform also offers performance and load testing with Grafana Cloud k6 and incident response and management with Grafana Incident and Grafana OnCall to enhance the observability experience.

Why run Grafana Cloud as a Docker Extension?

The Grafana Cloud Docker Extension is your gateway to seamless testing and monitoring, empowering you to make informed decisions based on accurate data and insights. The Docker Desktop integration in Grafana Cloud brings seamless monitoring capabilities to your local development environment.

Docker Desktop, a user-friendly application for Mac, Windows, and Linux, enables you to containerize your applications and services effortlessly. With the Grafana Cloud extension integrated into Docker Desktop, you can now monitor your local Docker Desktop instance and gain valuable insights.

The following quick-start video shows how to monitor your local Docker Desktop instance using the Grafana Cloud Extension in Docker Desktop:

The Docker Desktop integration in Grafana Cloud provides a set of prebuilt Grafana dashboards specifically designed for monitoring Docker metrics and logs. These dashboards offer visual representations of essential Docker-related metrics, allowing you to track container resource usage, network activity, and overall performance. Additionally, the integration also includes monitoring for Linux host metrics and logs, providing a comprehensive view of your development environment.

Using the Grafana Cloud extension, you can visualize and analyze the metrics and logs generated by your Docker Desktop instance. This enables you to identify potential issues, optimize resource allocation, and ensure the smooth operation of your containerized applications and microservices.

Getting started

Prerequisites: Docker Desktop 4.8 or later and a Grafana Cloud account.

Note: You must ensure that the Docker Extension is enabled (Figure 2).

Step 1. Install the Grafana Cloud Docker Extension

In the Extensions Marketplace, search for Grafana and select Install (Figure 3).

Step 2. Create your Grafana Cloud account

A Grafana Cloud account is required to use the Docker Desktop integration. If you don’t have a Grafana Cloud account, you can sign up for a free account today (Figure 4).

Step 3. Find the Connections console

In your Grafana instance on Grafana Cloud, use the left-hand navigation bar to find the Connections Console (Home > Connections > Connect data) as shown in Figure 5.

Step 4. Install the Docker Desktop integration

To start sending metrics and logs to the Grafana Cloud, install the Docker Desktop integration (Figure 6). This integration lets you fetch the values of connection variables required to connect to your account.

Step 5. Connect your Docker Desktop instance to Grafana Cloud

It’s time to open and connect the Docker Desktop extension to the Grafana Cloud (Figure 7). Enter the connection variable you found while installing the Docker Desktop integration on Grafana Cloud.

Step 6. Check if Grafana Cloud is receiving data from Docker Desktop

Test the connection to ensure that the agent is collecting data (Figure 8).

Step 7. View the Grafana dashboard

The Grafana dashboard shows the integration with Docker Desktop (Figure 9).

Step 8. Start monitoring your Docker Desktop instance

After the integration is installed, the Docker Desktop extension will start sending metrics and logs to Grafana Cloud.

You will see three prebuilt dashboards installed in Grafana Cloud for Docker Desktop.

Docker Overview dashboard

This Grafana dashboard gives a general overview of the Docker Desktop instance based on the metrics exposed by the cadvisor Prometheus exporter (Figure 10).

The key metrics monitored are:

• Number of containers/images
• CPU metrics
• Memory metrics
• Network metrics

This dashboard also contains a shortcut at the top for the logs dashboard so you can correlate logs and metrics for troubleshooting.

Docker Logs dashboard

This Grafana dashboard provides logs and metrics related to logs of the running Docker containers on the Docker Desktop engine (Figure 11).

Logs and metrics can be filtered based on the Docker Desktop instance and the container using the drop-down for template variables on the top of the dashboard.

Docker Desktop Node Exporter/Nodes dashboard

This Grafana dashboard provides the metrics of the Linux virtual machine used to host the Docker engine for Docker Desktop (Figure 12).

How to monitor Redis in a Docker container with Grafana Cloud

Because the Grafana Agent is embedded inside the Grafana Cloud extension for Docker Desktop, it can easily be configured to monitor other systems running on Docker Desktop that are supported by the Grafana Agent.

For example, we can monitor a Redis instance running inside a container in Docker Desktop using the Redis integration for Grafana Cloud and the Docker Desktop extension.

If we have a Redis database running inside our Docker Desktop instance, we can install the Redis integration on Grafana Cloud by navigating to the Connections Console (Home > Connections > Connect data) and clicking on the Redis tile (Figure 13).

To start collecting metrics from the Redis server, we can copy the corresponding agent snippet into our agent configuration in the Docker Desktop extension. Click on Configuration in the Docker Desktop extension and add the following snippet under the integrations key. Then press Save configuration (Figure 14).

integrations:
  redis_exporter:
    enabled: true
    redis_addr: 'localhost:6379'

In its default settings, the Grafana agent container is not connected to the default bridge network of Docker desktop. To connect the agent to this container, run the following command:

docker network connect bridge grafana-docker-desktop-extension-agent

This step allows the agent to connect and scrape metrics from applications running on other containers. Now you can see Redis metrics on the dashboard installed as part of the Redis solution for Grafana Cloud (Figure 15).

Conclusion

With the Docker Desktop integration in Grafana Cloud and its prebuilt Grafana dashboards, monitoring your Docker Desktop environment becomes a streamlined process. The Grafana Cloud Docker Extension allows you to gain valuable insights into your local Docker instance, make data-driven decisions, and optimize your development workflow with the power of Grafana Cloud. Explore a new realm of testing possibilities and elevate your monitoring game to new heights.

Check out the Grafana Cloud Docker Extension on Docker Hub.
